Product Overview
201TRUECUT

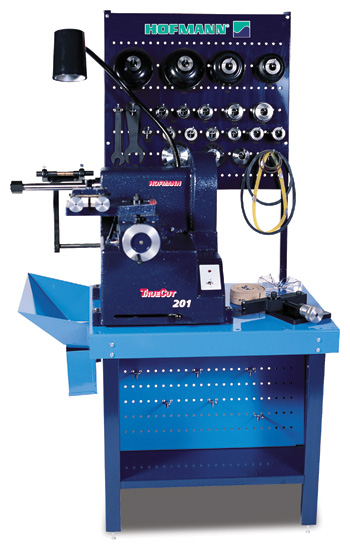

The Hofmann 201 TrueCut single-speed combination brake lathe is designed for value alternative for today’s automotive shops. The 201 TrueCut provides a quality finish with the performance, accuracy and versatility that is found in all Hofmann equipment. It’s simple "One-Cut" finish is factory set for a "Like New" Micro-Finish, and by swiveling the feed carriage it offers fast tooling changeover. The Hofmann 201 TrueCut is built to last. It has solid construction throughout, from the oversized tapered roller bearings supporting the lathe arbor to the 350 lb. ductile iron chassis. (Shown with optional Work Bench and Tool Board)
Click on one of the section titles to learn more about the Hofmann 201 TrueCut Brake Lathe.
Features
201 Brake Lathes:
- Simple "One-Cut" Finish: Feed carriage speed is factory set for a "Like New" micro-finish.
- Feed carriage speed may be set for one-cut finish for very fast machining and high production.
- Fast Changeover Of Tooling: Changeover from disc cutter to drum cutter is achieved quickly by swiveling the feed carriage assembly.
- Heavy-Duty Construction: From the oversized tapered roller bearings supporting the lathe arbor to the 350 lbs. ductile iron chassis, the 201 TrueCut brake lathe is built for years of machining.
- Innovative Tooling Design: The 201 TrueCut standard tooling package is easily adpated to all existing and future machining applications.
Specifications
| Drive Motor | ½HP (1,725RPM) |
|---|---|
| Drum/Rotor Carriage Motor | 1 Gear Motor |
| Arbor Speeds | 185 - 195 (RPM) |
| Arbor Diameter (Standard) | 1" |
| Maximum Arbor Weight (Standard) | 150 lbs |
| Rotor/Flywheel/Drum Feed Rate Per Revolution | 0.0025" |
| Rotor/Flywheel Diameter Range | 5" - 18" |
| Rotor/Flywheel Facing Travel | 4" |
| Rotor Thickness Range | 3" |
| Drum Diameter Range | 5" - 14" |
| Drum Facing Travel | 4" |
| Shipping Weight | 350 lbs |
| Power Requirements | 120V, 1Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| CW96 | Hubless adapter, 1" bore (5.5" diameter) (2) |
| W115 | Hubless adapter, 1" bore (4.750" diameter) |
| W114 | Hubless adapter, 1" bore (4" diameter) |
| W108 | Spring |
| BDL140 | Drum chatter band |
| BDL251-1 | Lamp |
| W110 | Cone, 1" bore (3" - 4" diameter) |
| W111 | Cone, 1" bore (2" - 3.125" diameter) |
| CW94 | Cone, 1" bore (1.150" - 2.350" diameter) |
| W101 | Spacer 1" bore, 2" long (2) |
| W99 | Spacer 1" bore, 1" long |
| W98 | Spacer 1" bore, 0.5" long |
| W220 | Left lock nut |
| CL605A | Tool plate assembly |
| CL130-1 | Allen key |
| W129 | Bearing adapter, 1" bore (2.047" - 2.781" diameter) |
| W119 | Bearing adapter, 1" bore (2.033" - 2.047" diameter) |
| W133 | Bearing adapter, 1" bore (1.659" - 2.033" diameter) |
| W221 | Wrench |
| W118 | Bearing adapter, 1" bore (1.285" - 1.659" diameter) (2) |
| W224 | Self-aligning spacer |
| W223 | Self-aligning spacer |
| W116 | Chatter band 9.75" |
| W131 | Chatter band 7" |
| W117 | Chatter band 10.75" |
| CL538 | Mounting shaft 10.5" |
| W107 | Collar Bar |
| W140 | Tool holder (2) |
| W140-1 | Tool bit holder (drum) |
Optional Accessories
| Part Number | Description |
|---|---|
| B206 | Heavy-Duty Work Bench |
| B203 | Backboard |

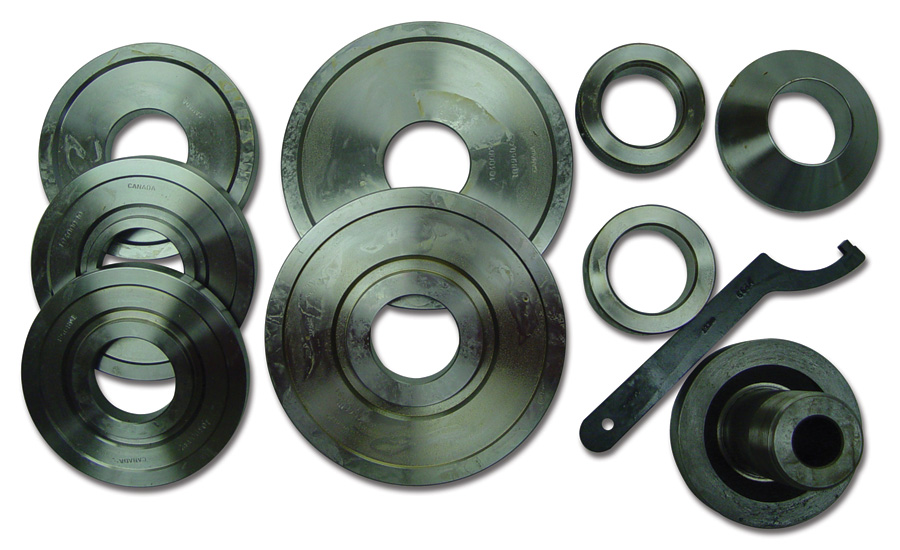

| 108963 | Universal Hubless/Composite Adapter Set |

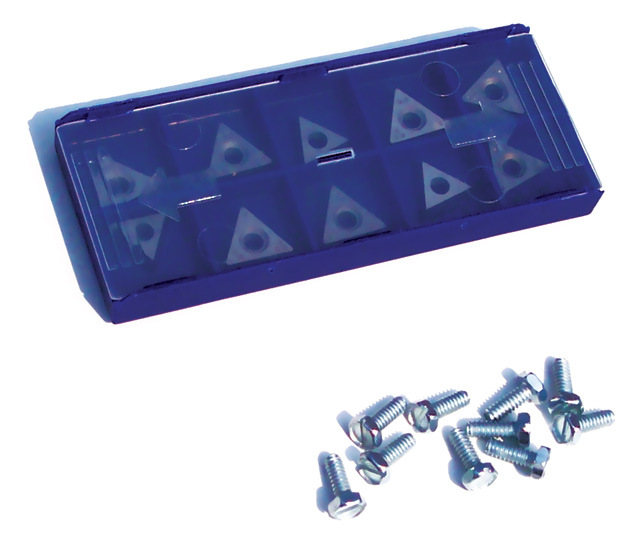

| 00090488000 | Carbide Bits (Set of 10) |

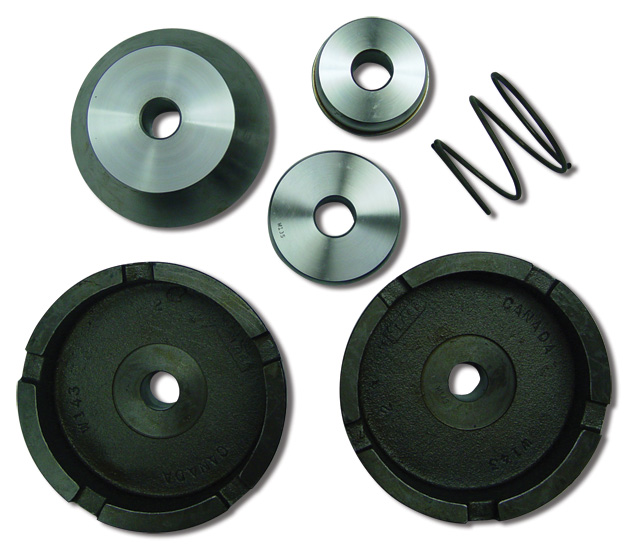

| TK4-1 | Truck Tooling Kit - designed to mount most ¾ and 1 ton truck drums and rotors, including 4-wheel drive, on any 1" arbor (not shown) |

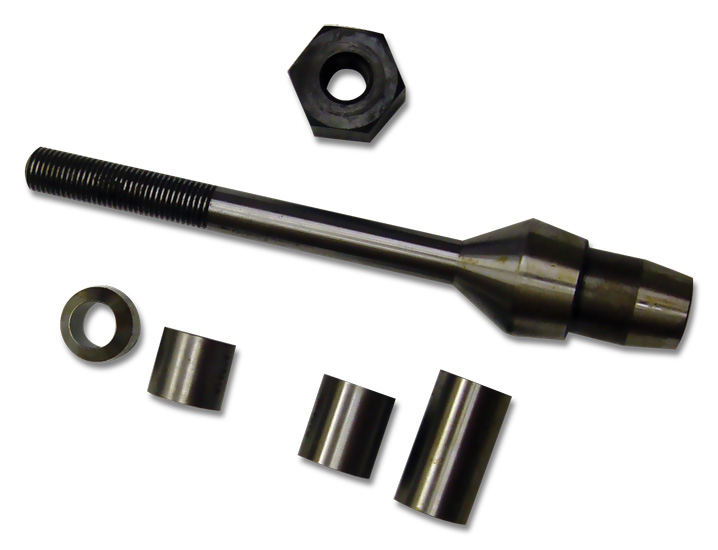

| W177 | 11/16" Arbor Kit |

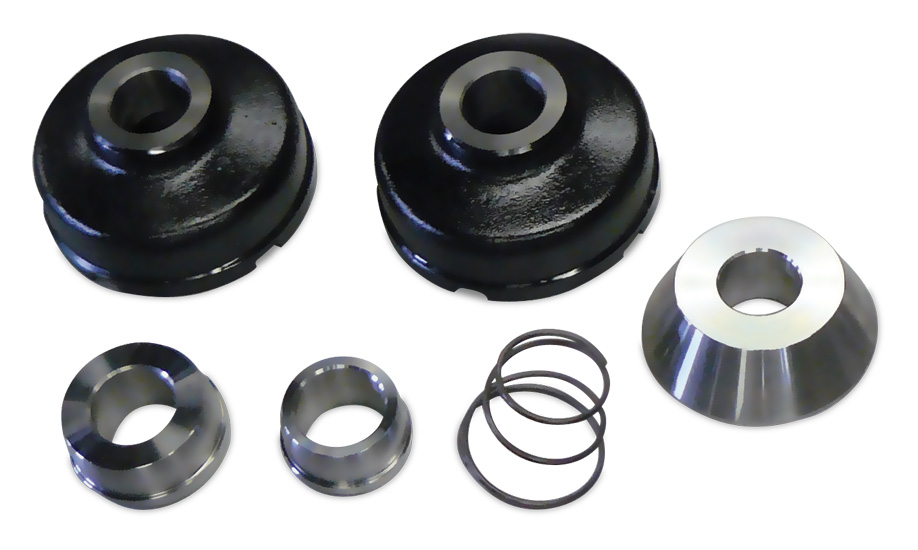

| TK-1 | Truck Tooling Kit |

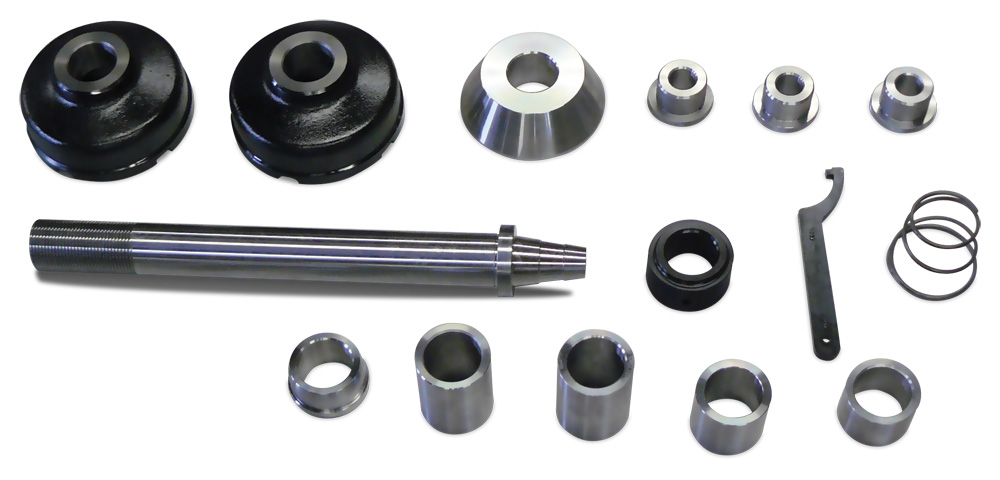

| TK-1HD | Truck Tooling Kit |
| 20107023 | Universal Hubless Adapter Set |

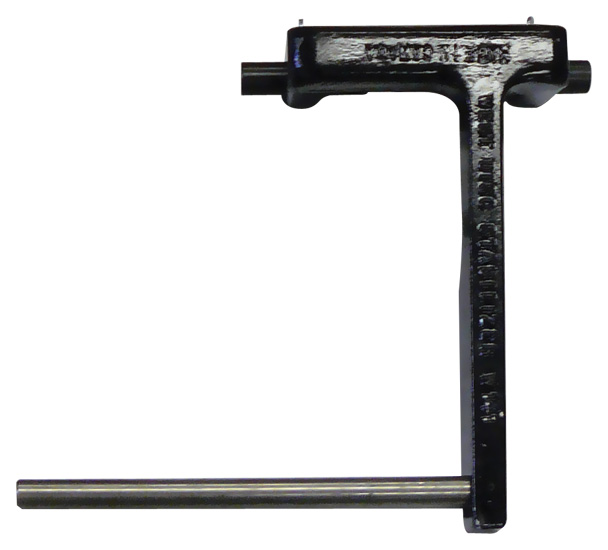

| CL503A | Disc Stabilizer Assembly |

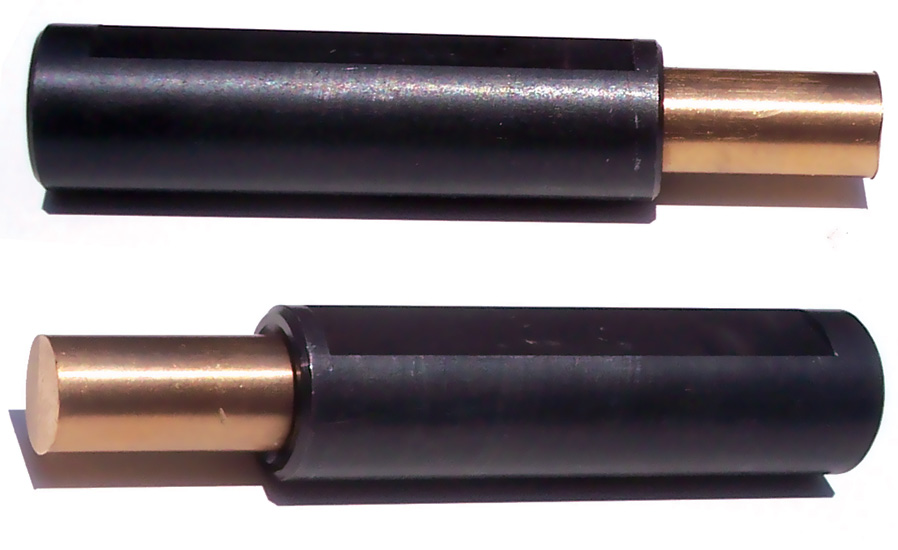

| 1103 | Rotor Silencer Tips (Set of 2, for use with CL503A) |
