Product Overview
EEWHUS736A

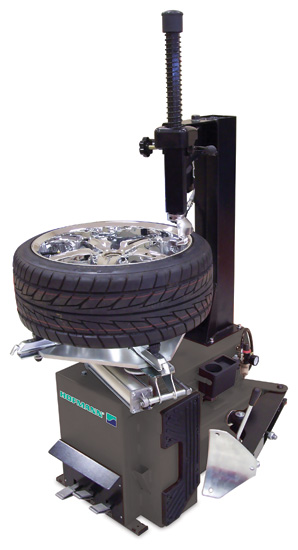

The monty 1000 tire changer is designed with the quality and durability associated with the Hofmann brand at an affordable price. The monty 1000 features dual clamping cylinders that assure proper clamping at all four jaws. The monty 1000 handles tires with up to 22" in wheel clamping diameter.
Click on one of the section titles to learn more about the monty 1000 Swing-Arm Tire Changer.
Features
- Rugged construction - built to last.
- Steel mount/demount head with protective inserts.
- Cam-operated lock raises the mount/demount head vertically to avoid wheel contact.
- Large adjustment knob locks the lateral movement of the mount/demount head.
- Standard lubricator/water separator ensures long valve life.
- Polymer valves eliminate rust and contamination.
- Large double-acting bead breaker cylinder.
- On-board pressure-limited inflation with inflation gauge.
Specifications
| Outer Clamping Diameter Range | 10" - 20" |
|---|---|
| Inner Clamping Diameter Range | 12" to 22" |
| Maximum Wheel Width | 12" |
| Maximum Outer Tire Diameter | 39" |
| Compressed Air Supply | 120 - 170 PSI |
| Bead Breaker Power | 2,200 lbs. |
| Bead Breaker Range | 3" - 13" |
| Work Area Dimensions (DxWxH) | 87" x 41" x 46" |
| Shipping Weight | 470 lbs. |
| Power Requirements | 120V, 1Ph, 60Hz |
