Product Overview
EEWBUS732A

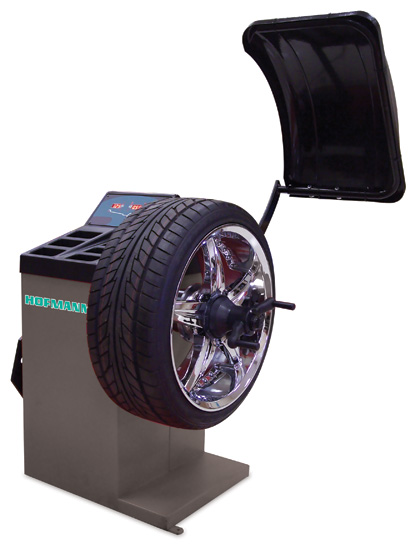

The geodyna™ 800 is designed with the quality and durability associated with the Hofmann brand at an affordable price. The bright LED display clearly exhibits wheel weight, while colored sequencing LED’s indicate weight location. For specialty balancing, there are five tape weight modes and a static only mode.
Click on one of the section titles to learn more about the geodyna™ 800 Wheel Balancer.
Features
- Manual data entry of wheel distance, width and diameter.
- Dynamic two-plane balancing for passenger cars.
- 5 ALU modes.
- Motorcycle mode.
- Gram/Ounce toggle.
- Fine mode.
- Membrane metal buttons for quick, easy and durable data entry.
- Self-calibration allows the technician to maintain balancer accuracy.
- Self-diagnostic program minimizes maintenance.
Specifications
| Maximum Tire Diameter | 35" |
|---|---|
| Maximum Wheel Width | 20" |
| Wheel Diameter Range | 12" - 22" |
| Maximum Wheel & Tire Assembly Weight | 143 lbs. |
| Balancer Shaft Diameter | 40mm |
| Measuring Speed | 200 RPM |
| Weight Storage Pockets | 9 |
| Data Entry (Wheel Distance, Diameter, Width) | Manual |
| Display | Integrated LED |
| Dimensions (DxWxH) | 44"x41"x64" |
| Shipping Weight | 265 lbs |
| Power Requirements | 120V, 1Ph, 60HZ |
Accessories
Standard Accessories
| Part Number | Description |
|---|---|
| EAM0005D23A | Automotive Cone (1.65" - 3.03") |
| EAM0005D24A | Automotive Cone (2.83" - 3.90") |
| EAM0005D25A | Automotive Cone (3.78" - 4.57") |
| EAM0005D40A | Calibration Tool |

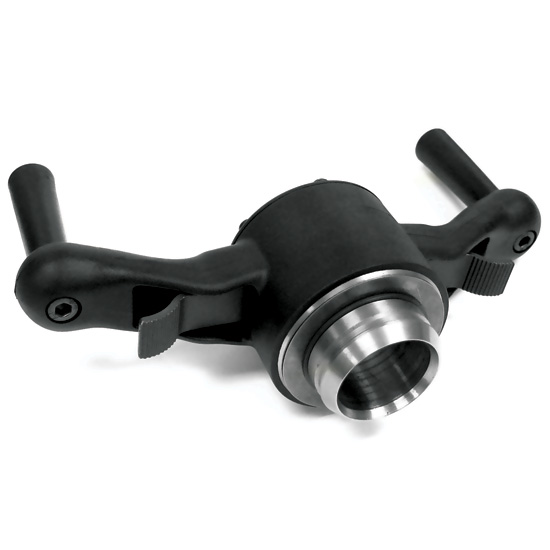

| EAA0263G66A | Quick-Nut |
| EAC0058D07A | Large Pressure Cup |

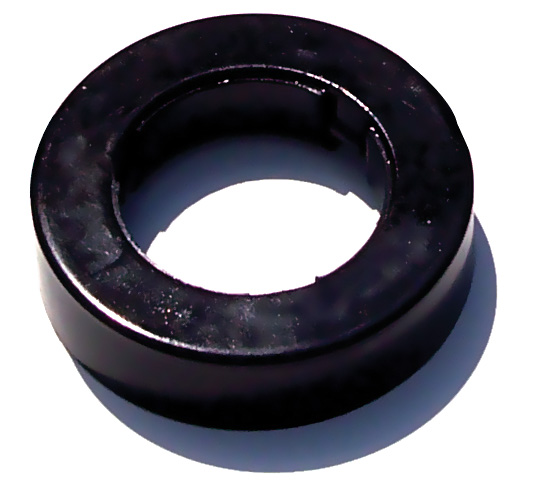

| EAC0058D08A | Small Pressure Disc |

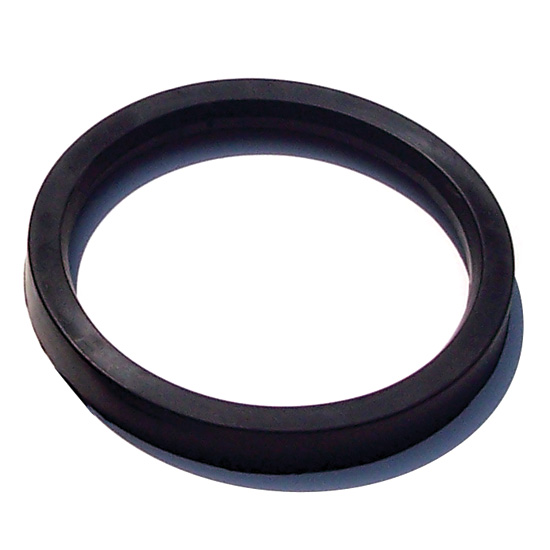

| EAC0058D15A | Soft Protective Ring |
| EAM0006G01A | Storage Peg |
| 00058839000 | Weight Pliers |
Optional Accessories
| Part Number | Description |
|---|---|
| EAK0221J31A | 7 Cone Kit (1.7" - 6.3") |
| EAK0221J60A | 4 Cone Kit (2.1" - 5.2") |
